P11C-I/NGFF2280

    P11C-I/NGFF2280

    英特尔® 至强® E mini-ITX 服务器主板采用机架优化设计与双千兆网口

    • 支持英特尔® 至强® E 平台
    • 支持 95W CPU 和高达 64GB 内存(4 DIMM)
    • 机架优化设计提供更佳的散热性能
    • 6 个原生 SATA HDD和1个 PCIe Gen3 插槽提供灵活的扩展性
    • 双英特尔® 千兆以太网支持群组功能
    • M.2 接口提供高达 32Gbps 数据传输速度
    • 支持 mini-SAS HD 高速连接
    • 华硕远程管理中心提供全面的服务器管理功能
    • 选配 ASMB9-iKVM 模块适用于 24/7 远程监控和诊断

      Mini-ITX compact server board with multiple expandability options

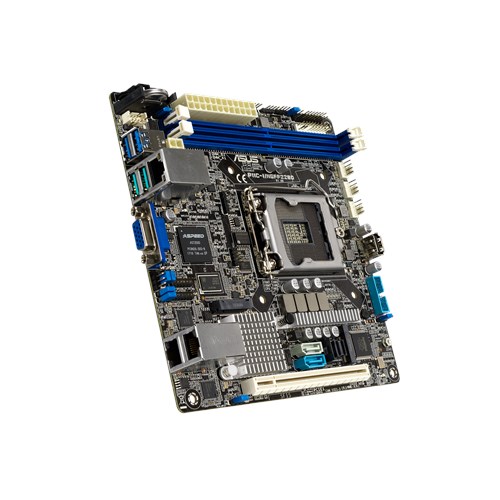

      P11C-I/NGFF2280 is a server motherboard based on the Intel® Xeon® E platform and Intel® C242 chipset offering dual server-class Intel® Ethernet and flexible expandability with M.2, six SATA 6G. The 6.7” x 6.7” Mini-ITX form factor can be easily integrated in short-depth chassis to greatly increase rack compute density.

      The layout is rack-optimized placement where the CPU and memory are placed in a parallel arrangement directly behind the fan inlet to promote maximum cooling for excellent thermal efficiency.

      Industrial-standard ATX with multiple expansions

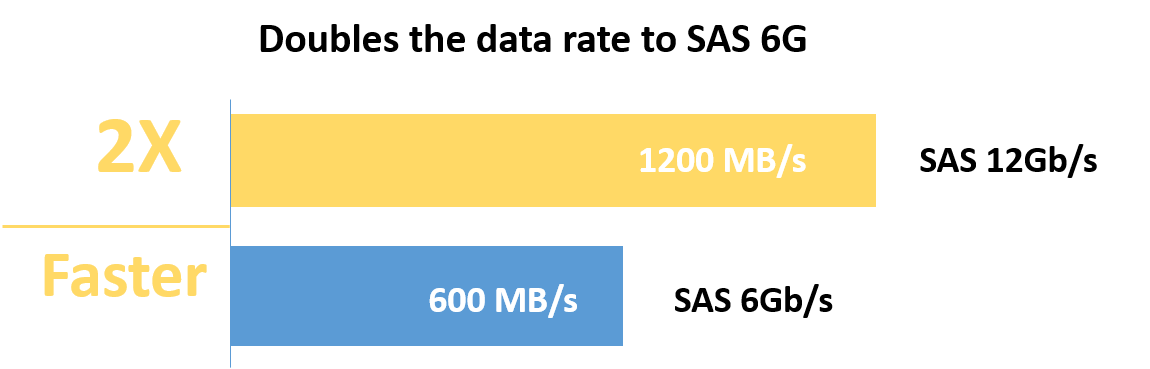

      Accelerated data-transfer speeds of up to 16Gbps with M.2

      Mini-ITX motherboards are typically limited to a single onboard M.2 connector due to the limited space of the small form factor. With an optimized design, ASUS P11C-I/NGFF2280/NGFF2280 features dual onboard M.2 connectors and support for 2280-length M.2 drives via PCIe or SATA, enabling faster data transfer speeds with RAID 0 configurations or instant data redundancy with RAID 1 for space-saving systems with no-compromise storage performance.

      High-speed mini-SAS HD connections

      P11C-I/NGFF2280 comes with a mini-SAS HD connector that support up to four SATA for 6Gb/s connectivity with external devices and cleaner cable routing. P11C-I/NGFF2280 also supports ASUS PIKE II 3000 series, the latest enterprise storage solution, featuring support for 12Gb/s SAS storage and integrated RAID data protection. With ASUS PIKE cards, you can immediately improve the storage capacity and performance of P11C-I/NGFF2280, making it a great upgrade option.

      High-speed mini-SAS HD connections

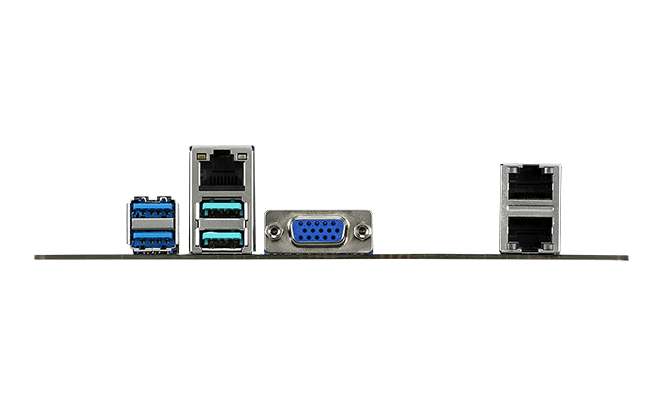

      Dual Intel® I210AT Gigabit Ethernet

      P11C-I/NGFF2280 features dual server-class Intel® Ethernet ports with the I210 controllers and teaming support that speed up the network bandwidth and the failover function ensures uninterrupted network connection. This suits virtualization applications perfectly which requires ultrafast and reliable network.

      Quad Intel<sup><sup><sup>®</sup></sup></sup> I210AT Gigabit Ethernet
      TPM-M 2.0 ready

      P11C-I/NGFF2280 supports TPM-M 2.0 with a 14-1 TPM header to securely store keys, digital certificates, passwords and data. It helps to enhance network security, protect digital identities, and ensure platform integrity.

      Comprehensive IT infrastructure management

      P11C-I/NGFF2280 features an optional embedded iKVM module and is bundled with ASUS Control Center to provide comprehensive out-of-band and in-band management features for small and mid-size businesses.

      The optional ASMB9-iKVM module supports remote BIOS updates, fan control, standalone KVMs, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics — even if the operating system is down or offline — through a user-friendly, web-based graphical interface that works with all major browsers.

      ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.

      Learn more about ASUS Control Center


      Watch the video

      Comprehensive IT Infrastructure Management
      Enhanced serviceability

      With its power button located on the front I/O panel, P11C-I/NGFF2280 is designed to provide easier maintenance and deployment for diverse applications.

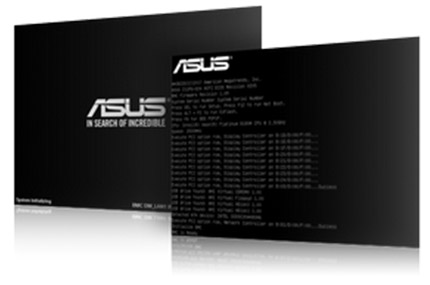

      Quick initialization guidance

      P11C-I/NGFF2280 provides instant system information during initialization as well as any unusual diagnostic results for more efficient IT operation and easy troubleshooting.

      Quick initialization guidance
      ASUS ProCool connector

      ASUS ProCool is designed without hollow area, this enables lower impedance, facilitates faster heat dissipation, resulting in cooler operating temperature. Reduces power loss and increases cost savings.

      ASUS ProCool connector
